Cx22S F6A SOHC Turbo Engine Bay Piping

Water

  • 9 – 13650-61B00 – Sensor, Temp
  • 10 – 09168-12016 – Gasket/Washer 12.2x21x0.8
  • 13 – 34850-70B10 – Water Temp (Gauge)
  • 9 – 13985-54A50 – Hose, Oil ‘cooler’, Inlet
  • 10 – 09352-70121-600 – Hose, Inlet Manifold > IAC; 100mm; 7×12.1×600
  • 11 – 09352-70121-600 – Hose, Inlet Manifold > IAC; 180mm; 7×12.1×600
  • 12 – 09352-70121-600 – Hose, Inlet Manifold > IAC; 390mm; 7×12.1×600
  • 13 – 09352-70121-600 – Hose, Inlet Manifold > IAC; 140mm; 7×12.1×600
  • 14 – 09401-11407 / 09401-11415 – Hose Clamp Clip
  • 15 – 09352-13162-600 – Hose, Protection Sleeve; 13.5×16.5×600
  • 20 – 17959-67F00 – Hose, Intake Mani > TB
  • 21 – 13998-65F00 – Hose, Protection Sleeve

Vacuum / Pressure

  • 20 – 13966-72B50 – Hose, Intercooler #1
  • 21 – 13967-73B52 – Hose, Intercooler #2
  • 22 – 09402-50511 – Clamp
  • 23 – 09402-57511 – Clamp
  • 29 – 18119-52E01 – Air Bypass Valve
  • 32 – 13923-72B70 – Hose, Air Bypass Valve, Inlet
  • 33 – 13924-72B71 – Hose, Air Bypass Valve, Outlet
  • 34 – 09401-23403 – Clamp, Air Hose #5
  • 35 – 18114-64D00 – Solenoid, Air Bypass Valve Control
  • 37 – 09358-35754-600 – Hose, Inlet Manifold > Check Valve, L:65mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:65mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:65mm, 3.5×7.5×601
  • 38 – 09367-04009 – 3 Way Joint
  • 39 – 95569-78040 – Check Valve (1 Goes to atmosphere)
  • 41 – 09358-35754-600 – Hose, Inlet Manifold > Check Valve, L:100mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:100mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:100mm, 3.5×7.5×601
  • 42 – 09358-35754-600 – Hose, Inlet Manifold > Check Valve, L:95mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:95mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:95mm, 3.5×7.5×601
  • 43 – 09358-35754-600 – Hose, Air Bypass > Air Bypass Solenoid, L:195mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:195mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:195mm, 3.5×7.5×601
  • 44 – 09358-35754-600 – Hose, Air Bypass Solenoid > 3 Way Joint, L:30mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:30mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:30mm, 3.5×7.5×601
  • 45 – 09358-35754-600 – Hose, Air Bypass Solenoid Bottom > Atmosphere, L:140mm, 3.5×7.5×600
  • – 09355-35754-601 – Hose, L:140mm, 3.5×7.5×601
  • – 09355-35006-601 – Hose, L:140mm, 3.5×7.5×601
  • 46 – 09408-00067 – Clip, 7.5mm Hose 2 Way
  • 47 – 09408-00033 – Clip, 7.5mm Hose 2 Way
  • 48 – 09408-00140 – Clip, Air Bypass Valve Hoses
  • 5 – Valve, ISC (Idle Speed Control)
  • 8 – Sensor, Pressure (MAP)

MAC Valve

    Two of the commonly used, reference MAC Valves for boost control

    • 35A – Series
    • A – Individual Inline
    • C – Port Size, 1/8″ BSPPL
    • A – Universal 3-Way Inline
    • D –
    • DB – 12VDC (5.4w)
    • A – 18″ Lead
    • 1 – Non-Locking Recessed
    • BA – Grommet
    • 35A – Series
    • A – Individual Inline
    • A – Port Size, 1/8″ NPT
    • A – Universal 3-Way Inline
    • D –
    • DB – 12VDC (5.4w)
    • A – 18″ Lead
    • 1 – Non-Locking Recessed
    • BA – Grommet

    Brake Upgrade – Vented

    It is common that people wish to upgrade the front brakes to a more conventional rotor on front of hub and vented rotor setup.
    The consensus is “Swift / Alto / Geo Metro”, but never really any more specific details than that.
    Below is the part numbers of the setup my black car came with — again, I have little clarity as to what exact model the parts are from.

    Caliper, Rotor

    (Reference Image Only)
    • 10: Brake Pads
      Marking – GDB 883
      Possible Models – TRW
      107.3 x 44.6mm, 14.9mm Thick
    • 13: Rotor
      Marking – 60B3
      Determined OEM # – 55311-60B30
      Possible Models – MegaZip
      231 x 17mm Vented, 64mm Centre Hole, 4×114.3
    • 14: Rotor Dust Shield
      Marking – 60B20
      Determined OEM # – 55321-60B20
      Possible Models – MegaZip

    Knuckle, Hub

    (Reference Image Only)
    • 15: Washer
      18 x 35 x 4mm
    • 16: Hub
      Marking – 4B25
    • 20: Hub Bearing
      Markings – Koyo DAC3668AW
    • 21: Knuckle Seal
      Markings – Koyo -OR MHRA 53 68.2 7 12

    Black Car Current Setup (Pads removed)

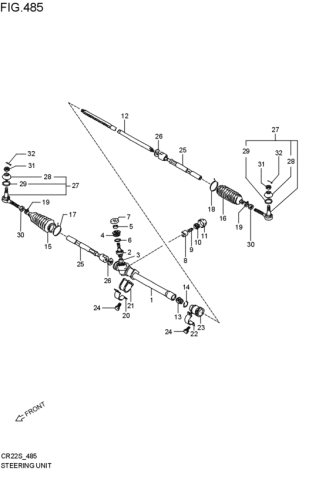

    Front Knuckles

    Diagrams and part numbers for the stock Suzuki Alto / Alto Works Cx11V front knuckle setup

    CL11V / CM11V

    • 1-1: 45111-70B10 Steering Knuckle RH [CL: B, P]
    • 1-2: 45111-70B20 Steering Knuckle RH [CL: I, R, SX; CM: P, I, SR]
    • 1-3: 45111-70B30 Steering Knuckle RH [CL/CM: RSX, RSR]
    • 2-1: 45151-70B10 Steering Knuckle LH [CL: B, P]
    • 2-2: 45151-70B20 Steering Knuckle LH [CL: I, R, SX; CM: P, I, SR]
    • 2-3: 45151-70B30 Steering Knuckle LH [CL/CM: RSX, RSR]
    • 5: 09100-12033 (09103-12501) Bolt 12×53 (12×55)
    • 6: 08321-31123 (08321-0112A) Split Washer
    • 7: 08310-12123 (08310-0012A) Nut
    • 24: 45200-70B00 (45200-69DV1) Control Arm
